In Which Mann Tile Comes to the Rescue

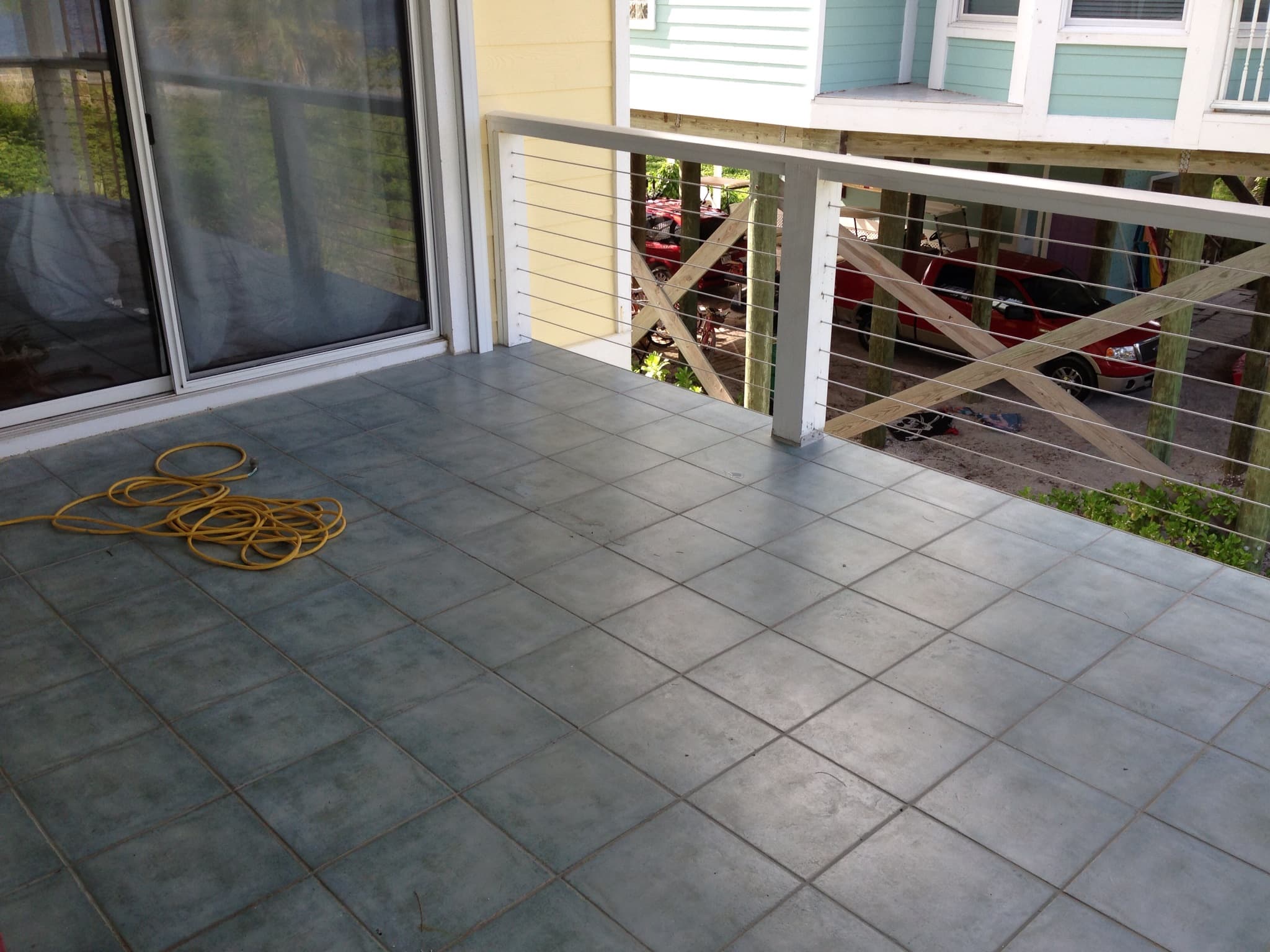

IMG_0292

So, on Palm Island, there was this tiled porch. Nothing too spectacular, but it doesn’t look too bad either.

IMG_0298

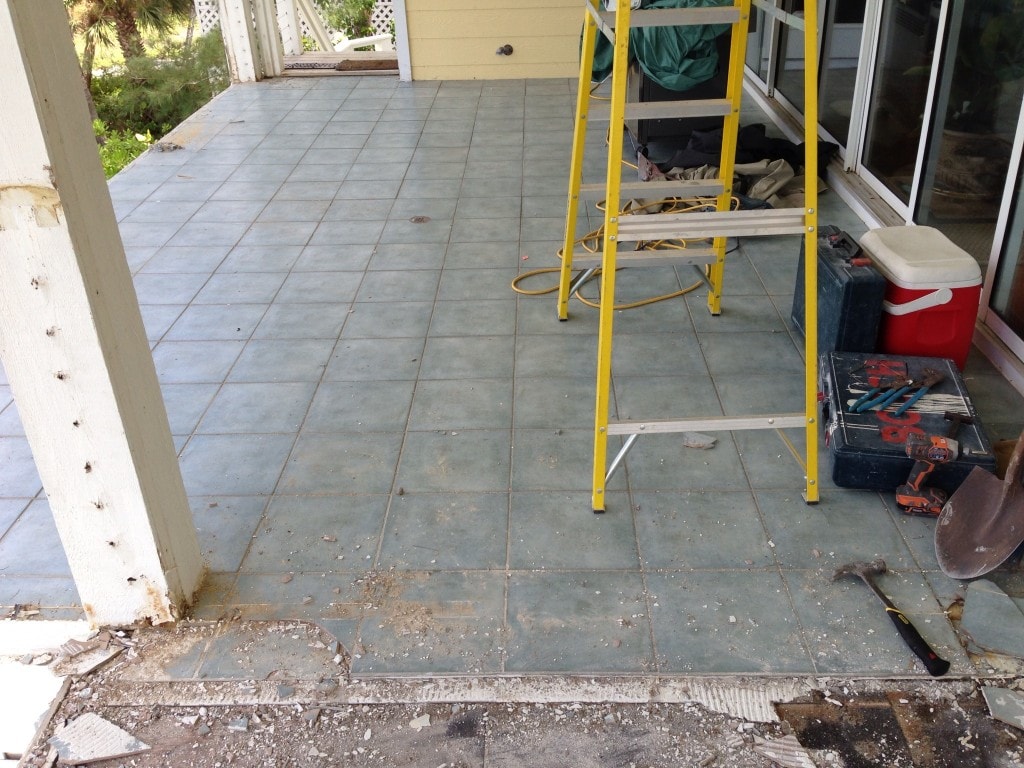

The only trouble was that it was not waterproofed properly… and was becoming dangerous.

IMG_0294

So we went to work taking out two layers of existing tile.

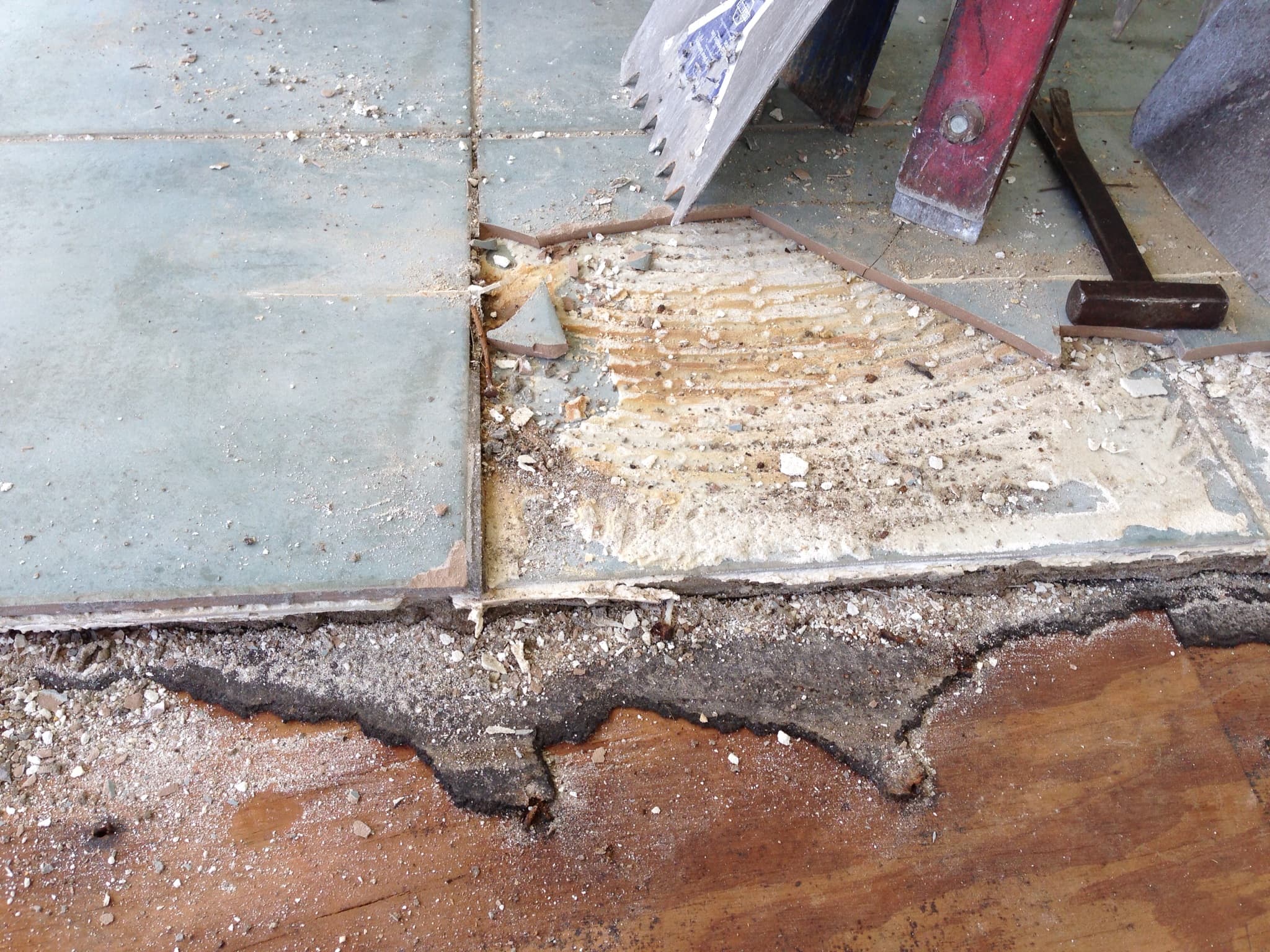

IMG_0299

Here you can see both layers of tile, plus the tar paper (which was the previous attempt at waterproofing) and the plywood substrate.

IMG_0296

It took some hard work, but we got it done.

IMG_5550

And what we uncovered was pretty nasty…

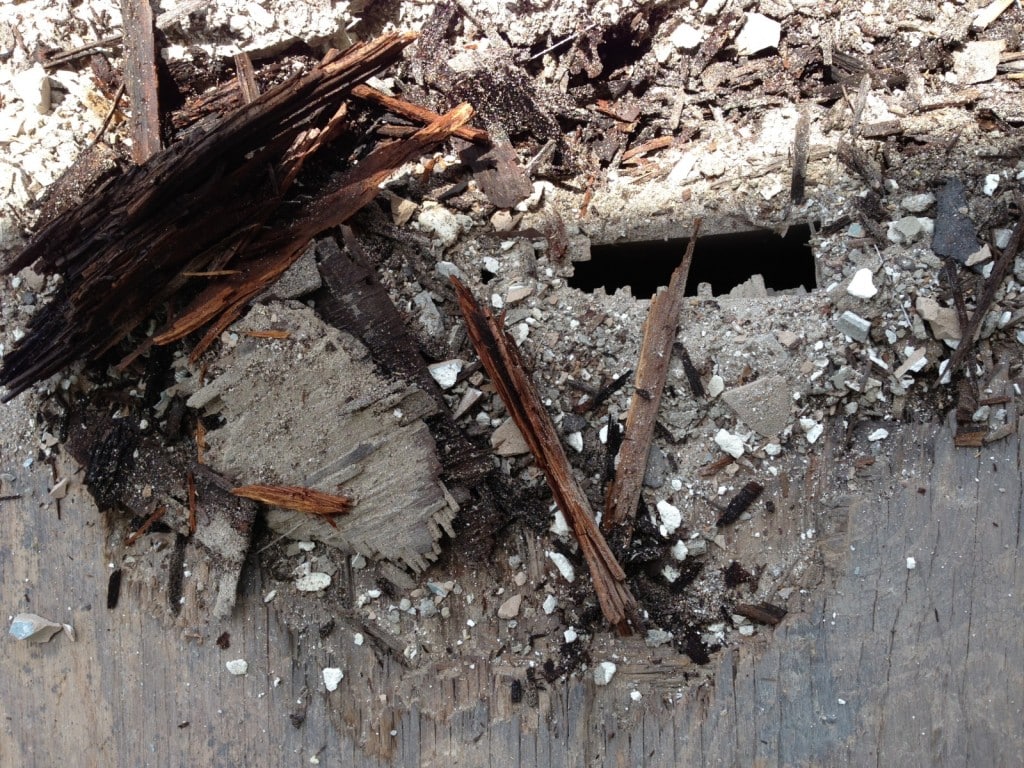

IMG_5545

This is not something you want to see on a porch floor two stories up!

IMG_5548

You could see the ground, two stories below, through some of the holes caused by water rotting through the wood!

IMG_0309

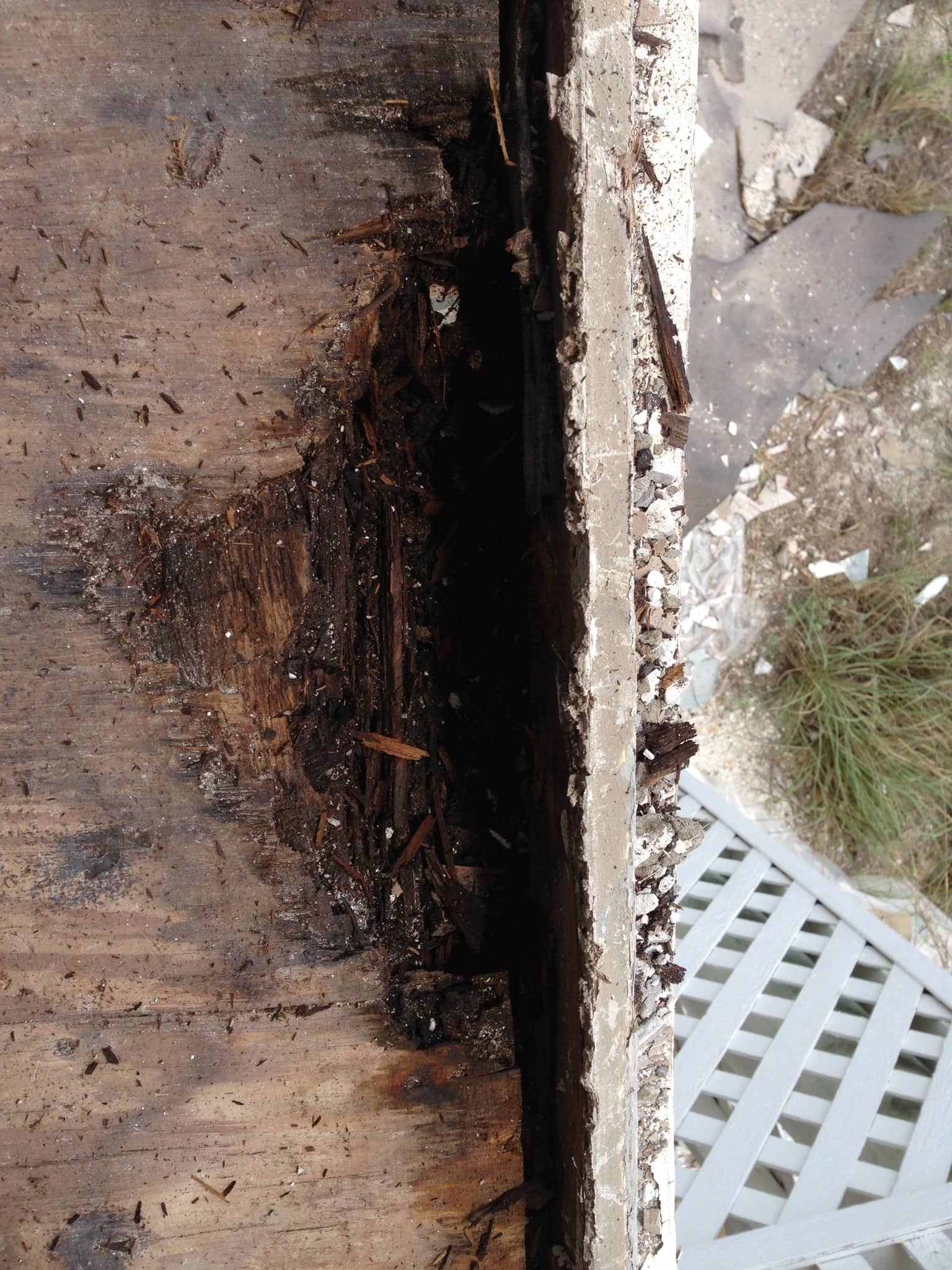

The edges were especially bad…

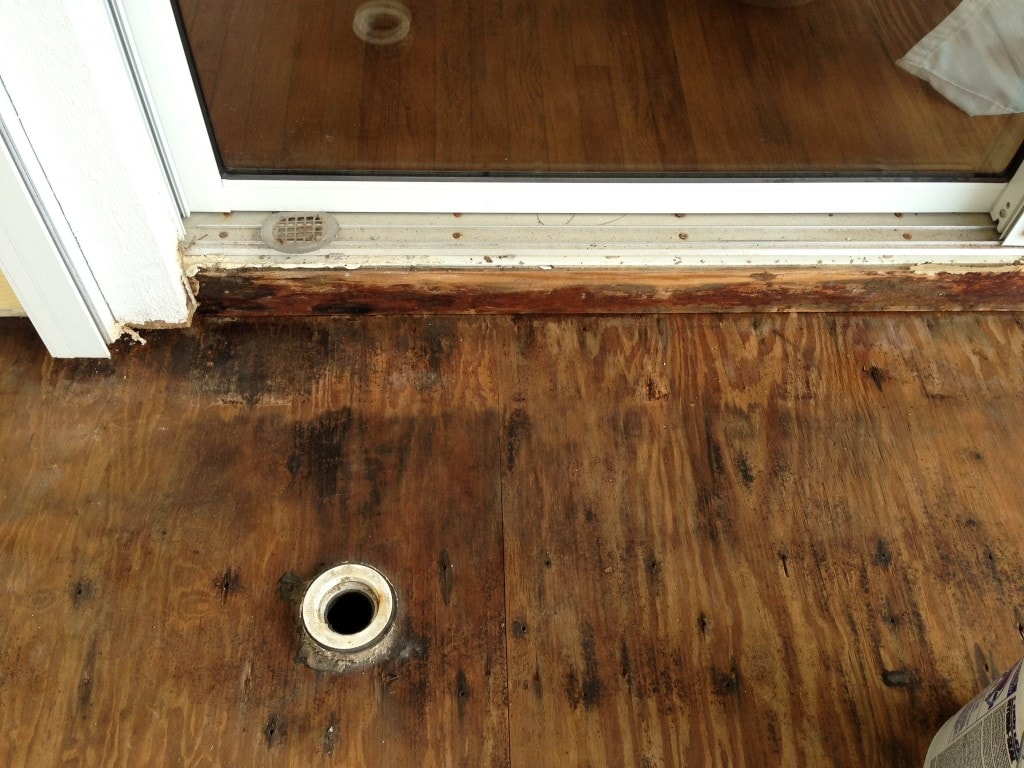

IMG_5546

Here you can see the drain–and all the water damage around it.

IMG_0328

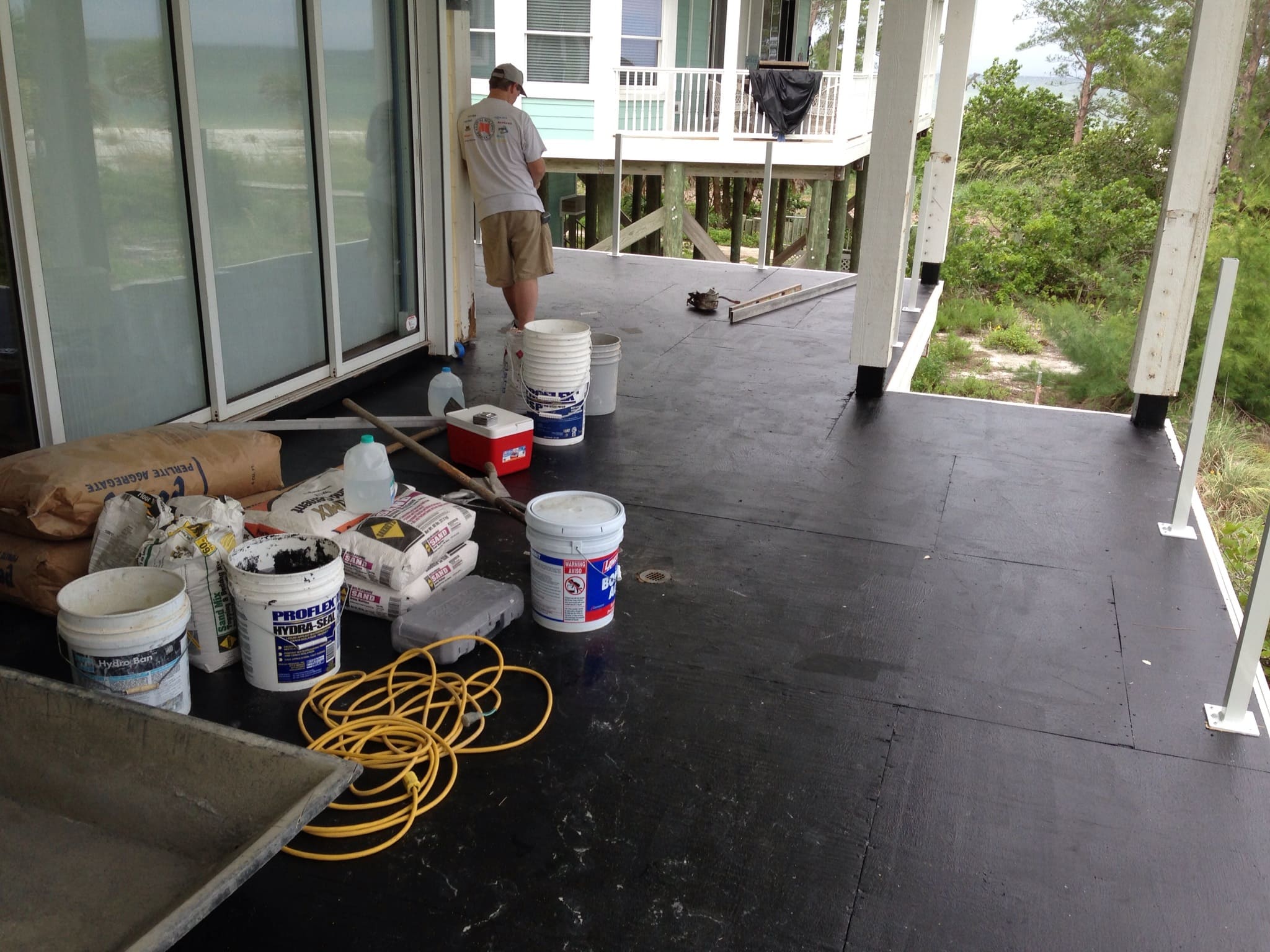

After the contractors had repaired the wood on the deck and covered it with tar paper, it was our turn!

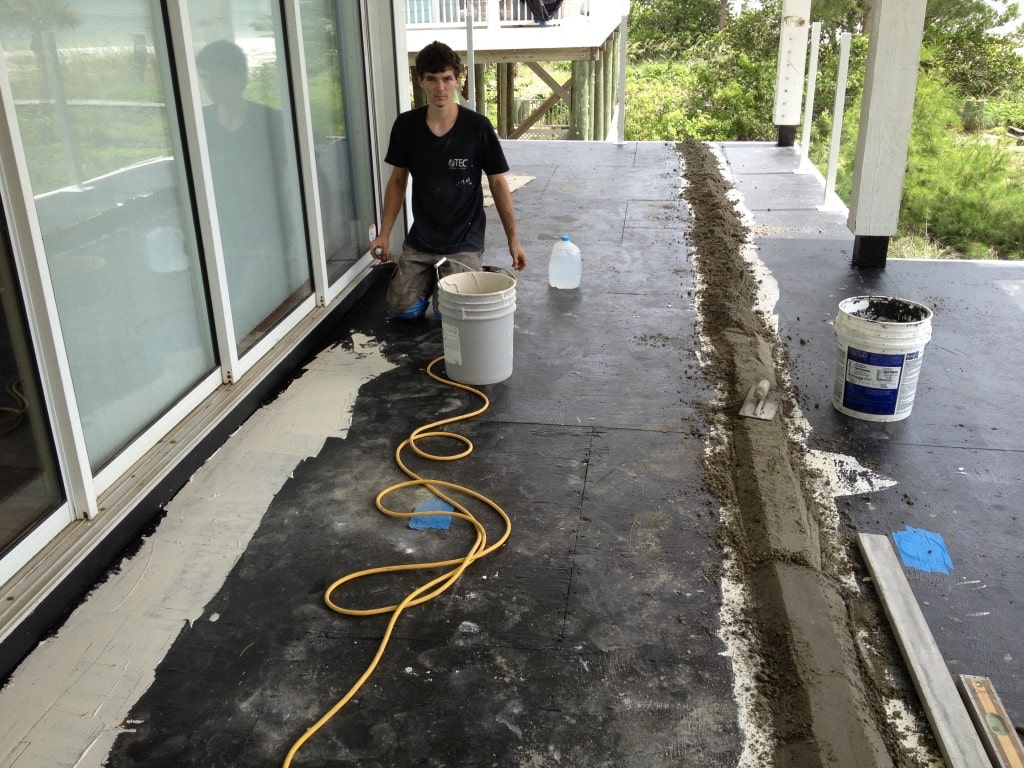

IMG_5708

Here’s Josiah working on a seam… Rob was working on laying the mud “guidelines” for building it up and slopping it so it would drain properly.

IMG_0338

After the mudding was finished, it was time for Kerdi! This is a waterproofing membrane designed and manufactured by Schluter. (It’s the same orange stuff we use in our tiled showers.)

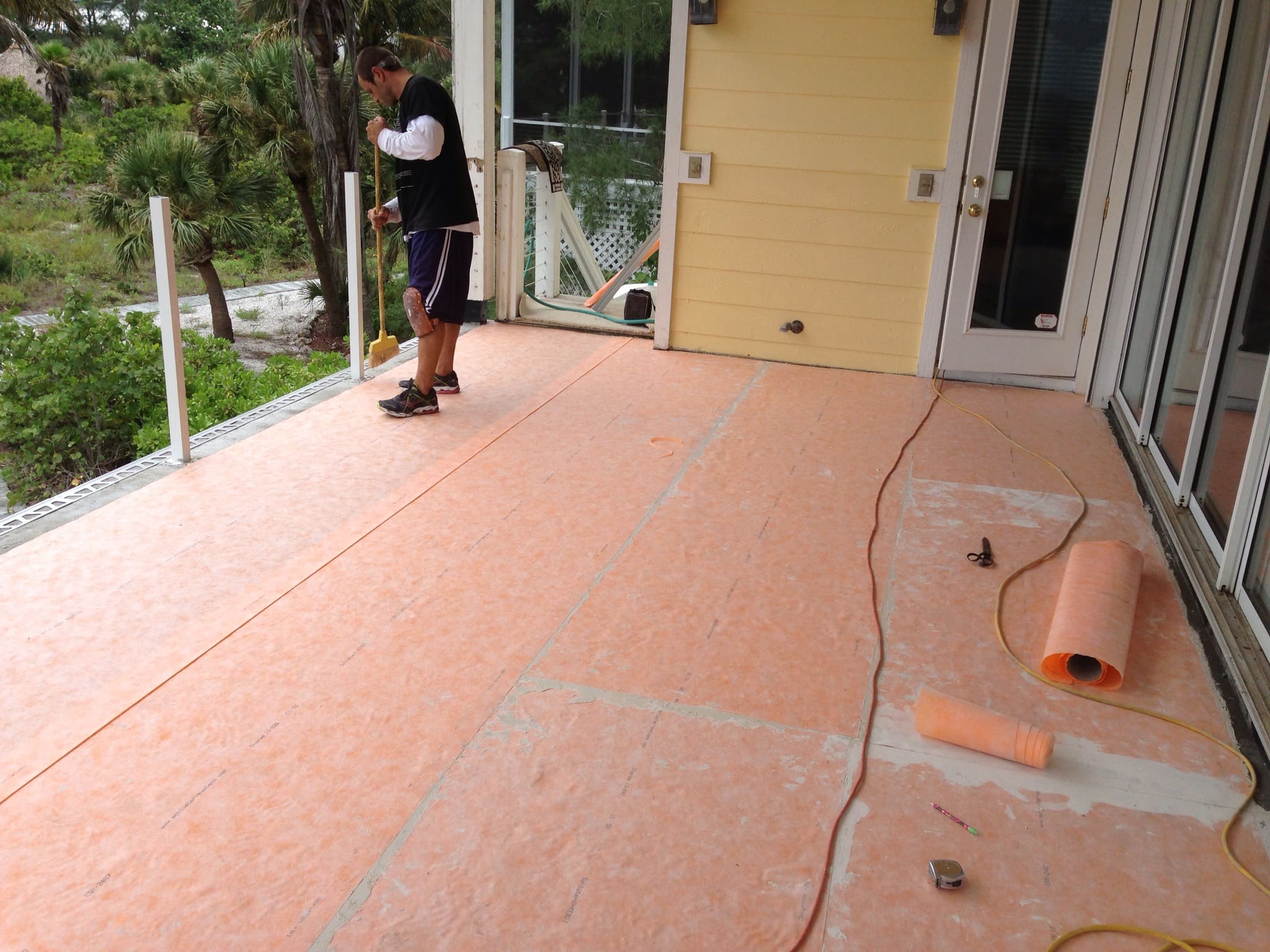

IMG_0342

Erick sweeping things off after the Kerdi installation was finished. On the edge of the porch you can see the metal “drip edge” we installed. (more on that later)

IMG_5931

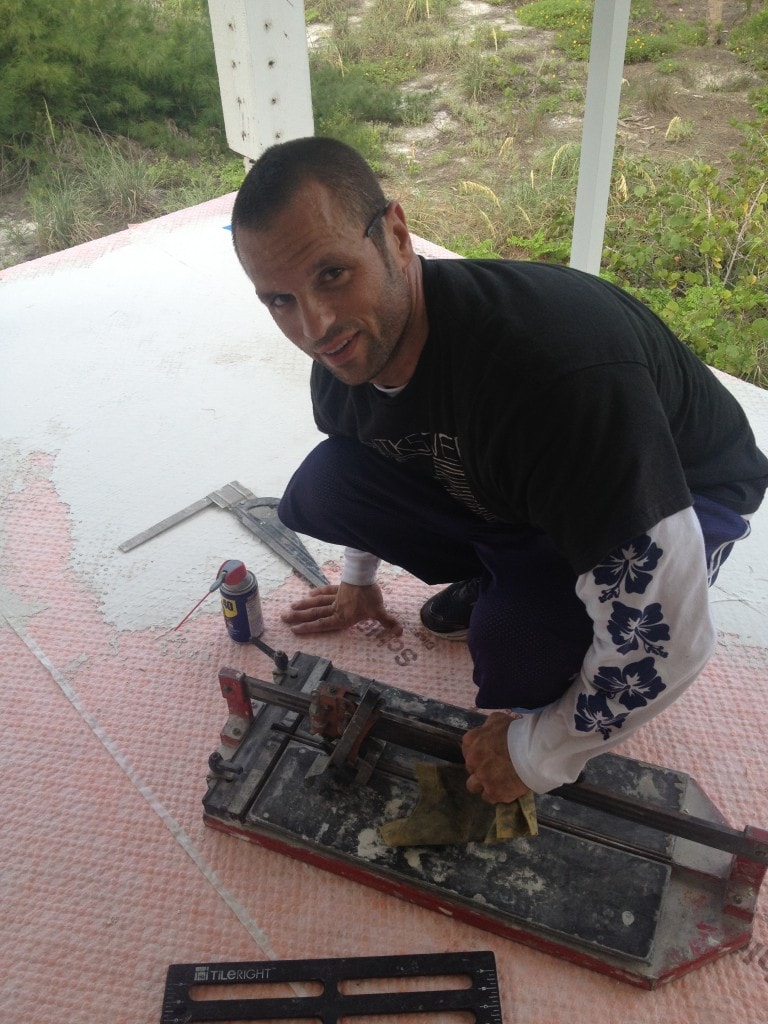

Erick and the cutter… underneath them, you can see the Ditra-Drain we installed after the Kerdi mat.

IMG_5933

And another view of the Ditra-Drain. This provides drainage, ventilation, uncoupling and more.

IMG_0348

Here’s Rob and Ed installing tile over the Ditra-Drain!

IMG_5937

Coming along nicely…

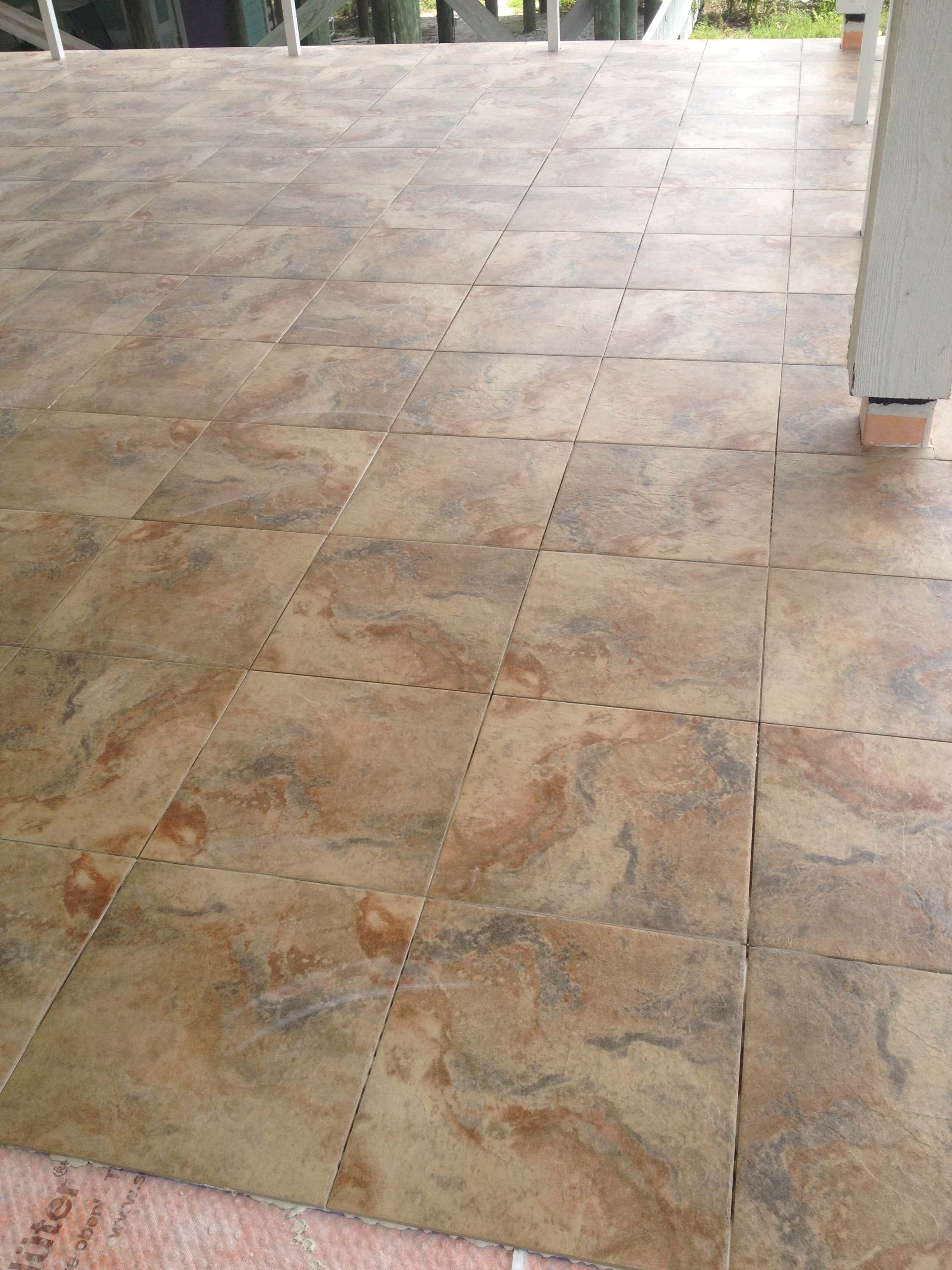

IMG_5938

Almost done!

IMG_0356

And here’s a nice view of the scenery–and the drip edge! This helps the water to drip down harmlessly away from the wood and onto the ground and protects the otherwise exposed edges of the installation.

Tiled Deck

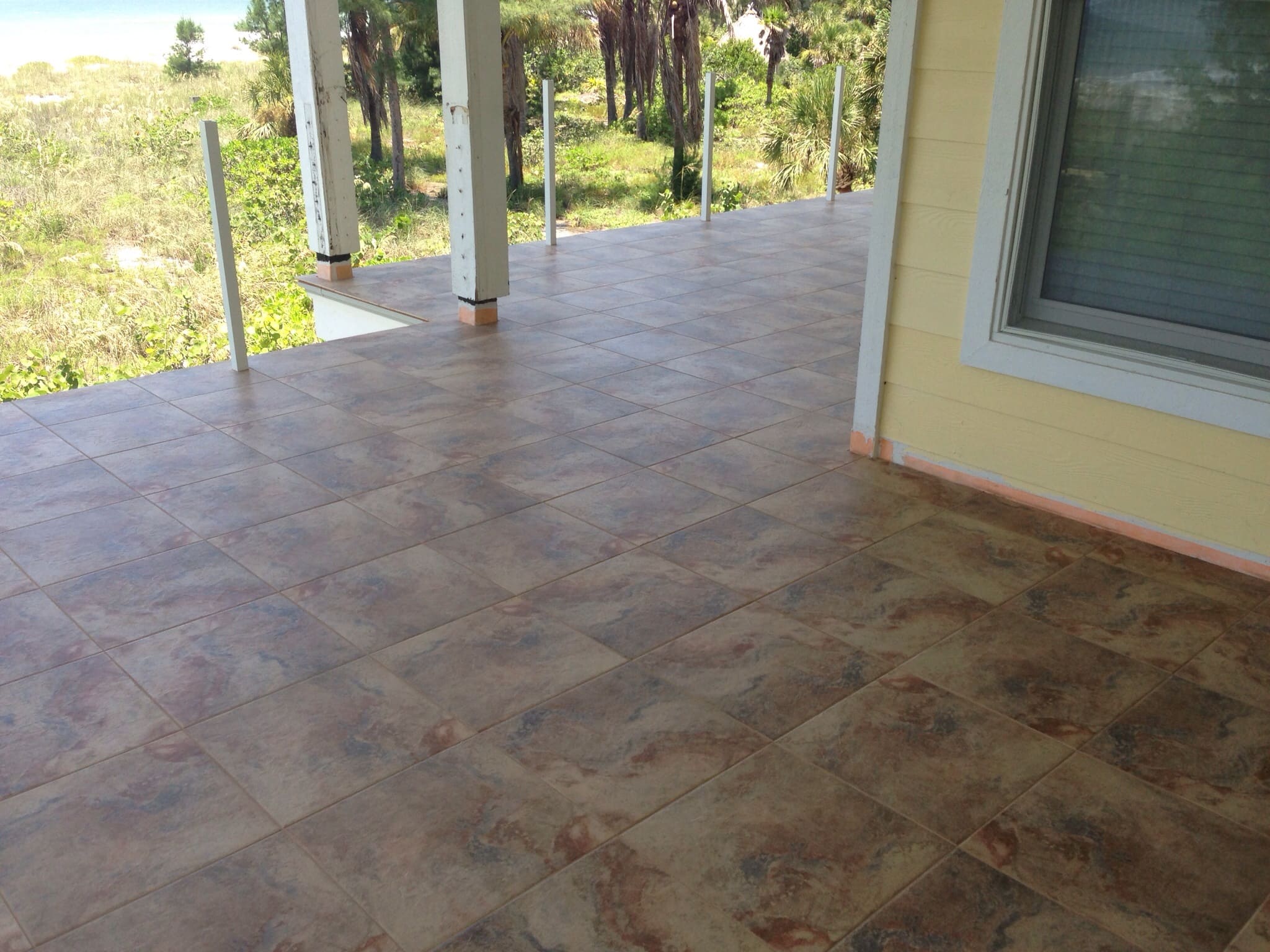

And the completed tile installation! (The remodel contractor finished up the baseboard and railing after we finished…)

Now these customers can rest easy, knowing that their porch will remain a safe, attractive place to enjoy the beautiful view!
